OVERVIEW

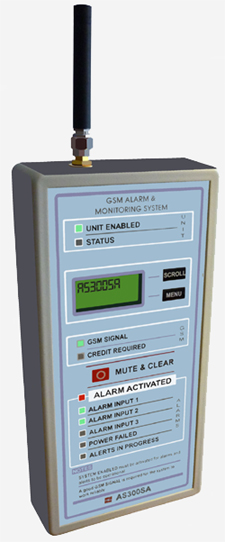

The AS300SA is a new
generation of monitoring and alarm systems. Make an informed decision on what
action to take based on instant readings from the
equipment monitored. Sent at any time to your mobile
phone - particularly useful if an alarm occurs when the
person on call is out of the workplace, in the middle of
the night, or at the weekend.
With no need
for a phone line or line rental the AS300SA is exceptional
easy to install. The programming of telephone numbers and
input settings can be done from any location by a mobile
phone with the relevant password. The AS300SA can have
up to five telephone numbers programmed into it.
Multiple units
at different sites can be connected anywhere in the country
or countries as the system uses a gsm network of your
choice.
The AS300SA
has many special features like the Defrost Function which
allows an input to have the alarms disabled. The disabled
period can be set from 0 to 90 hours from the users mobile
phone. Once the disabled period has elapsed the alarms will
become active automatically.
The
AS300SA can log data which can be sent to a server, this
data can be down loaded to a computer and stored.
SIMPLE
INSTALLATION
It’s easy to install the AS300SA with the
supplied bracket and industrial strength Velcro. Fit the
probes into the equipment and plug them into the sockets.
No phone line or line rental is required as the system uses
a gsm network of your choice. Then program the settings
into the AS300SA from a mobile phone.

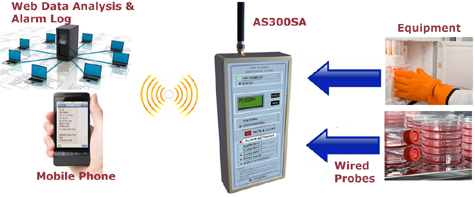

MULTIPLE SITES
Multiple linked sites can be alarmed and
monitored across the country or countries as the system uses
a gsm network. There’s no limit to distance or location.
SETTINGS
Setup and
change all settings from a mobile phone, all password
protected.
Including
:-
Contact Telephone
Numbers.
Outgoing Message.
Alarm Input
Settings.
QUERY UNIT
Query
unit from a mobile phone
Including
:-
Alarm
Status.
Real Time
Values of Input 1, 2 & 3 and Power.
Network
Signal Strength.
Credit
Value in Sim Card.
ACKNOWLEDGE
ALARM
Acknowledge alarm from a mobile phone
I
ncluding
:-
Silences
audible alarm on unit once acknowledged.
Once
acknowledged, recipient’s who have received an alarm
text will be sent a message giving telephone details of
the acknowledger.
DISABLE/|DEFROST FUNCTION
This allows the user to send a text message
to the AS300SA unit to disable either I/P1 or I/P2 for the
desired time, up to 90 hours. Once this time has elapsed the
input will be automatically be reactivated to accept alarms.
CALIBRATION
FUNCTION
This allows the user to
calibrate input 1 or input 2 for temperature. This is done
by disconnecting the probe from the relevant input and
connecting the calibration key-fob to the input. A text
message is sent to the AS300SA for the relevant input. The
unit now carries out a calibrating procedure which takes
approximately 2 minutes. During calibration the relevant
stages are indicated on the display.
DATA LOGGING
OVERVIEW
The
AS300SA can log data which can be sent to a server, this
data can be down loaded to a computer and stored. The data
collected can be analysed using our data analysis software.
The data interval stored can be selected between 1 minute to
60 minutes, this interval will be dependant on the type of
equipment being monitored. The alarm log gives details of
all alarms, listing alarm input, time, date, call direction,
telephone number, acknowledgers number and whether the call
was successful or failed.
DATA DUMP
Data from the AS300SA will be sent to the
server once every 24 hours. The data can also be sent on
demand by the user. To access the data a username and
password is required. The data is organised into zip files
and can be downloaded to the customers computer.
DATA ANALYSIS
Data
analysis software allows the user to look at the data in
numerical and graphical forms. Information at the top of
the screen is displayed for the selected unit. Information
includes, Serial Number, First Reading, Last Reading, Number
of Readings, Max Temp, Min Temp and Average Temp for I/P1
and I/P2.
The data
in the columns displays information on Date, Time,
Temperature Input 1, Temperature Input 2, High Alarm
Set-point, Low Alarm Set-point and Delay Time. Graphs with
scale breaks can be displayed by simply clicking on the
graph tab.
The alarm
log gives historical information of time, date, call
direction, telephone numbers, alarm input and whether the
call was successful or failed.
REPORTING
Print out the data can be
done in three ways.
Transmitter Report prints
the data column view
Graph Report prints the
graph veiw.
Summery Report prints the
"header" information for each transmitter and alarm log.
System
Specification and Functions
INPUTS THAT ARE CONFIGURABLE
I/P1
Precision
Temperature +/-0.1ºC. (–200ºC to +100ºC)
CO2 & Temperature Probe (Uses
I/P1 & I/P2)
Humidity & Temperature
Probe
(Uses I/P1 & I/P2)
I/P2
Precision Temperature +/-0.1ºC.
(–200ºC to +100ºC)
I/P3
Volt Free.
OUTPUTS
Relay.
CONFIGURABLE ALARMS
I/P1, I/P2, I/P3, I/P RS232,
Power Fail.
MEMORY
Over 4000 readings.
TELEPHONE NUMBERS
5 Telephone Numbers.
PASSWORDS
Master and Acknowledger 4
digit password. The Master is used to change or enable
parameters and functions.
DISPLAY
Display of Sim Number, Values
of I/P1, I/P 2, Sim Value and Signal Strength.
GSM SIGNAL
Visual indication of signal
strength. Audible and visual indication if network strength
is lost or low.
SIM CARD
Low Credit Warning text
message and visual, audible warning on GSM Unit.
BATTERY BACK UP
Rechargeable Batteries
EXTERNAL DIMENSIONS
160H x 90L x 50D mm
TELEPHONE ALARM MESSAGES
Up to five telephone numbers
can be programmed into the AS300SA a text message will be
sent to a mobile and a voice message sent to a land line.
The outgoing message can be up to 90 characters long and the
value and input alarming is tagged on to the end of the OGM.
Visual indication of alarm message sent on GSM unit.
FUNCTIONS INITIATED FROM MOBILE PHONE
Enable or Disable GSM unit.
Setup Alarm Parameters e.g. High Alarm,
Low Alarm and Delay time for each input. (Delay time 0
to 90 minutes)
Setup Telephone Numbers, mobiles and land
lines.
Enquire Details Including Alarm Status,
Signal Strength, Setup Values, Amount of Credit in Sim
Card and Input Readings.
Acknowledge Alarms.
Test Alarm Function.
Disable / Defrost Alarm Facility For I/P1
and I/P2 to accept alarms. (0 to 90 hours)
Calibration Function.
Output Function. This allows the
customer to turn the relay output on or off.
