AS200RX Receiver
UPGRADE
RECOMMENDED
The AS200RX
Receiver is now a legacy product which has been replaced by
the AS300RX Receiver or the AS300 Communicator. The
AS200RX system can be greatly enhanced by installing an
AS300 Communicator.
The A200RX can still be
purchased if required.
A leaflet on
this upgrade can be downloaded here.
 |
UPGRADE
LEAFLET FOR AS200RX RECEIVER |

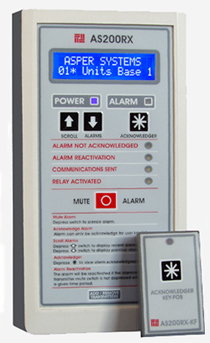

AS200RX
RECEIVER
ALARMS
Once an
alarm is generated from an AS200TX transmitter the
AS200RX will display and sound an alarm.
The
display will show the unit number of the transmitter,
I/P and time & date it was received. The audible alarm
can be muted but a user key-fob must be used to clear
the alarm from the screen.
ALARM /
LOG DISPLAY
The
receiver alarm log will store up to 999 alarm
and acknowledgement
details. Each alarm and acknowledgement is time & date
stamped and can be downloaded to a computer to create an
audit trail.

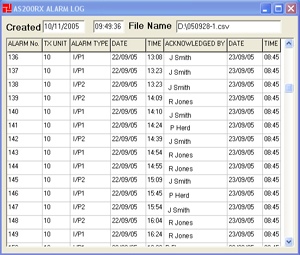

ALARM LOG
SOFTWARE
Download
and view software enables the creation of an audit trail
from the alarm and acknowledgement event log. The
receiver will store up to 999 alarm events and can be
downloaded, stored and viewed at any time.
ACKNOWLEDGEMENT KEY-FOBS
Up to four
individually named user key-fobs are available. Key-fob
user 1 is designated the administrators key-fob. The
administrators key-fob can add and remove transmitters
from the system and clear the alarm log. The remaining
user key-fobs will only acknowledge alarms.
COMMUNICATIONS
Selectable
communications are available including
conventional auto-dialler, GSM dialler and web enabled
facility. The GSM or web enabled facility can be used
in conjunction with a conventional auto dialler.
DATA
LOGGING & MONITORING
Data
logging and monitoring from AS200TX transmitters is
possible with the AS200RX receiver when used in
conjunction with a computer and relevant software.
The data
collected for each transmitter is as follows :- Serial
Number, Unit Number, Temperature I/P1, Temperature I/P2,
High Alarm, Low Alarm and Delay Time.
The
transmitter will update the computer every 15 minutes
with the data. This increases to every 10 minutes when
the transmitter is in an alarm condition. Faster data
collection available on request.
Data
capture software enables the display of variables
collected. A range of software is available to cover
clients requirements.
System
Specification and Functions
●
Compact size. 195H x 100W x 60D (mm)
●
Simple to use.
●
125 Channels, one transmitter
per channel.
●
Additional receivers can be
added to expand system.
●
Two line LCD display of alarms giving details
of the transmitter unit and fault.
●
Up to 999 alarms and acknowledgements can be
stored in the receiver event log.
●
All alarms and acknowledgements are time and
date stamped in event log.
●
Acknowledged by individually unique user
key-fob.
●
Up to four individually named user key-fobs
available.
●
Reactivation of alarm at the receiver every
hour if alarm is not muted at transmitter. (This feature can
be disabled by client)
●
Add / remove transmitters by a simple press of
one button & administrators key-fob.
●
Audible alarm.
●
Programmable alarm communications window of 10
minutes.
●
Auxiliary Volt Free Contact : Common, Normally
Open, And Normally Closed.
●
Power failure alarm.
●
Rechargeable battery backup.
●
Selectable communications
available, conventional auto-dialler, GSM dialler and web
enabled facility. |
